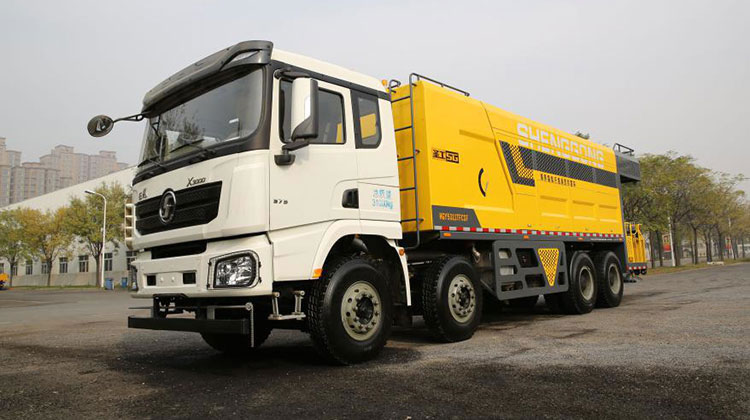

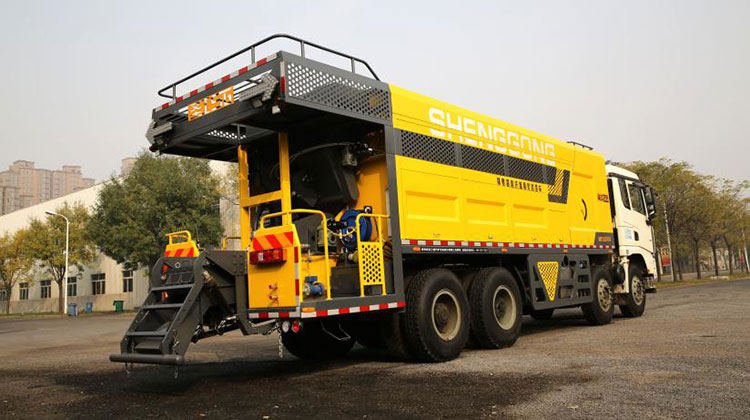

HGY5311TCSF Micro Surfacing/Slurry Paver

This vehicle is primarily used to fix all kinds of problems on roads. It can be widely applied in a variety of slurry seal, micro-surfacing and other construction process. The slurry paver can adapt to numerous special working conditions like slurry mix, short time, high forming speed, thin pavement, just to name a few. It can fulfill your requirements for rapid construction, low construction cost, wide application, low energy consumption and many others.

HGY5311TCSF Micro Surfacing /Slurry Paver

The slurry paver is primarily used to fix all kinds of problems on roads, such as road resistance, crack, rutting and other problems, improving slip resistance and water resistance of road. The road construction equipment can be widely used in diluted slurry seal, modified asphalt, micro-surfacing treatment and other construction process.
According to the proportion of mixture, the slurry paver delivers the material, such as modified emulsified asphalt, clean aggregate, mineral fillers, fiber, water and additive, to mixer. Then the double-axle forcible mixing device forms fluid emulsified asphalt slurry seal and transfers it to the paving box. Finally, emulsified asphalt slurry seal is evenly distributed on the road in accordance with the required thickness and width.

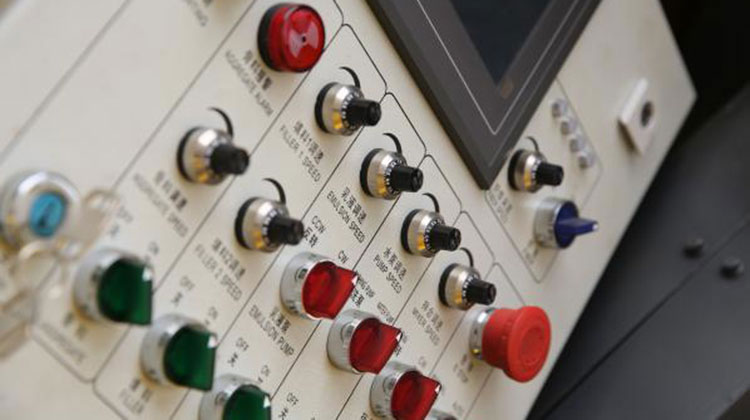

The slurry paver uses new technology of artificial intelligence. The technology not only can remember, store and learn manual parameters. But also it can automatically adjust operating parameters or use construction parameters in the stored construction database. By using the new technology, the slurry paver can be controlled intelligently and it can transfer data to the console through the internet platform of company. By using the cloud monitor the construction data, we can guide construction site to carry out system work, and detailed data ensures the accuracy of system work, reducing the difficulty of manual operation. Automatic and manual operating systems achieve a double protection of the control system.

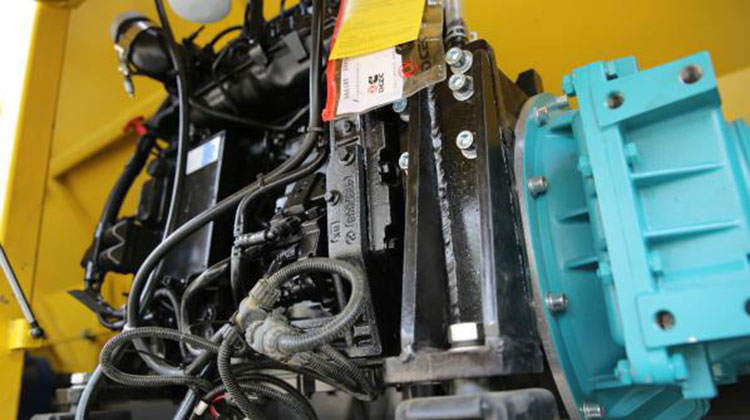

The slurry paver is equipped with auxiliary engine and multiple independent hydraulic power system, providing a strong, sustained and stable power source for the whole system. By using blades with high strength and high wear resistance, the slurry paver ensures good mixture quality.

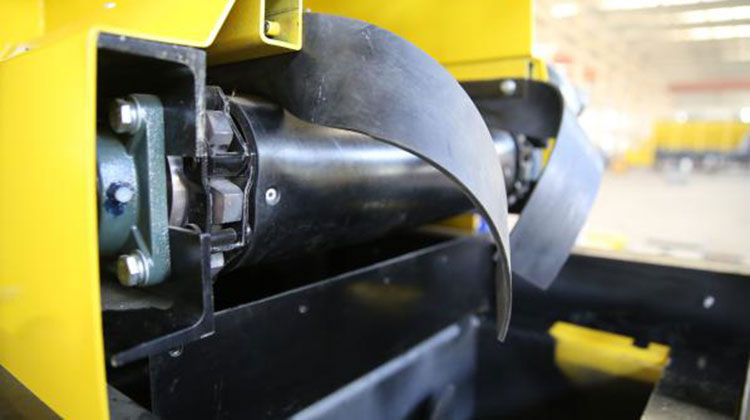

The slurry paver possesses unique hopper and belt conveyor. And fiber supply system with small volume and accurate measurement can cut the fiber evenly.

The paver system is equipped with a double-row screw propeller which has the function of distribution and secondary mixing, effectively preventing the isolation of slurry. And the paver system possesses automatic retractable structure, 13m³ hopper and 3.5t / min mixer discharging speed. In addition, key parts are purchased from international well-known brand, ensuring the reliability and stability of the machine.
